X-DRS Ceiling Standard

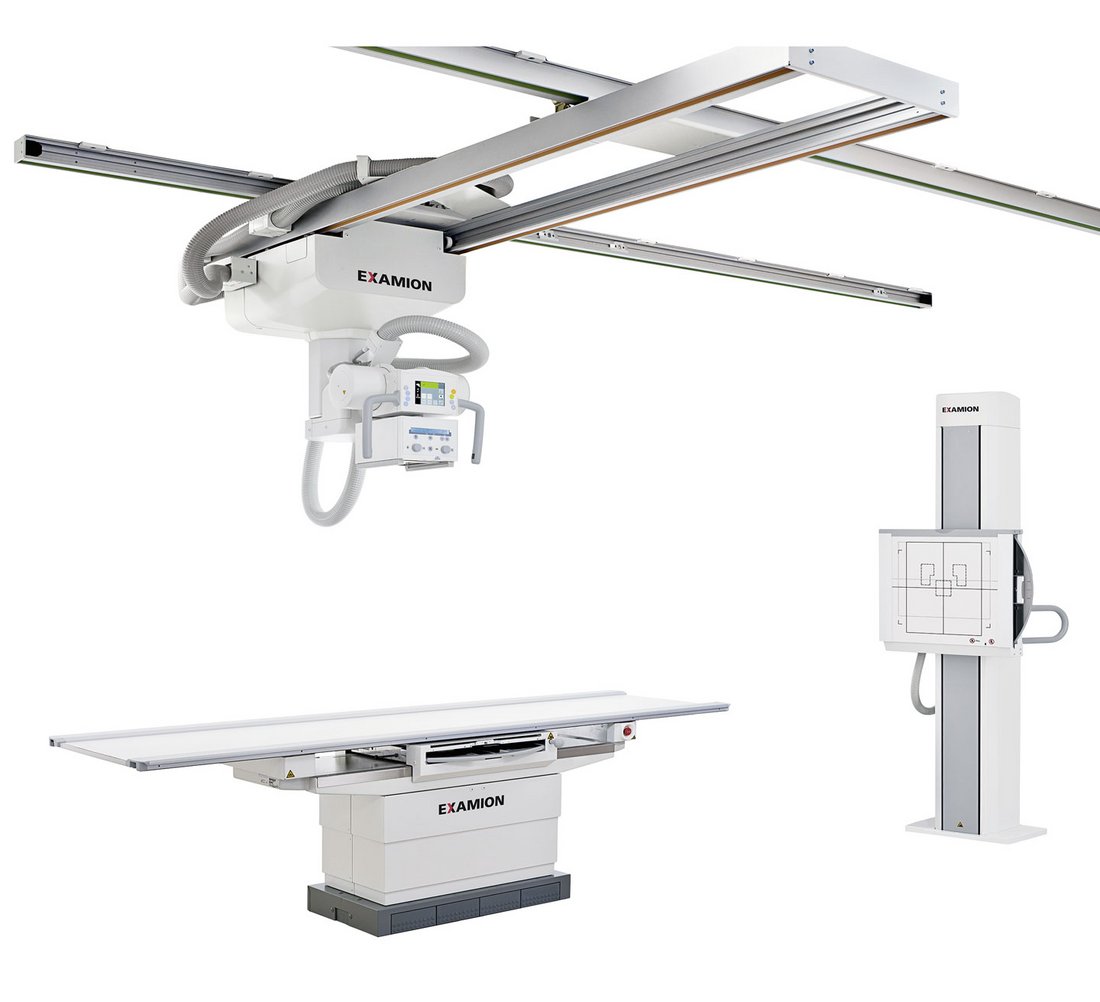

X-DRS Ceiling Standard is a general-purpose digital X-ray diagnostic stationary device used for X-ray examinations. The x-ray tube is motorized and moved into position by a tracking system when the table or wall unit is moved. The device is designed to perform examinations of the patient in a standing, sitting and lying position. Structurally, the device consists of two workplaces: a lifting table for pictures and a vertical rack for pictures.
The X-DRS Ceiling Standard is an extremely robust X-ray system, suitable for the entire range of radiological examinations in hospitals. The various settings for X-ray doses and generator operation are fully configurable to the corresponding requirements of the operator or the examination, ensuring adequate power reserves in all cases.
In the standard version, the X-ray system is equipped with electromotive tracking functions that assist the operator to obtain correct positioning prior to X-ray exposure. The X-ray tube itself is motorised and is moved into position by the tracking system when the table or wall unit is moved. The stitching function version offers the highest degree of motorised movement, allowing fully automatic full-leg or full-spine imaging acquisition at the wall unit.
- Motorised tracking of the X-ray emitter when the table height changes, or when the bucky tray is moved on the wall stand
- Stitching option: Bucky movement automatically results in correct positioning for the required partial images
- An exclusively mechanical version is available for special applications
Table:
- Height adjustment
- Length 240 cm
- Width 80 cm
- Max. the weight of the patient is 250 kg
Stand:
- The height adjustment range from the floor is 34-173 cm

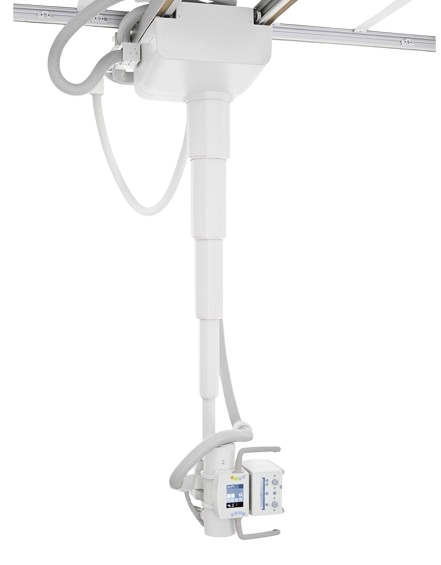

Ceiling rail rack:
- Vertical motorized tracking of the wall table
- The tube rotation range is ± 135o
- Vertical movement movement: 180 cm
- Horizontal travel movement: 350 cm
