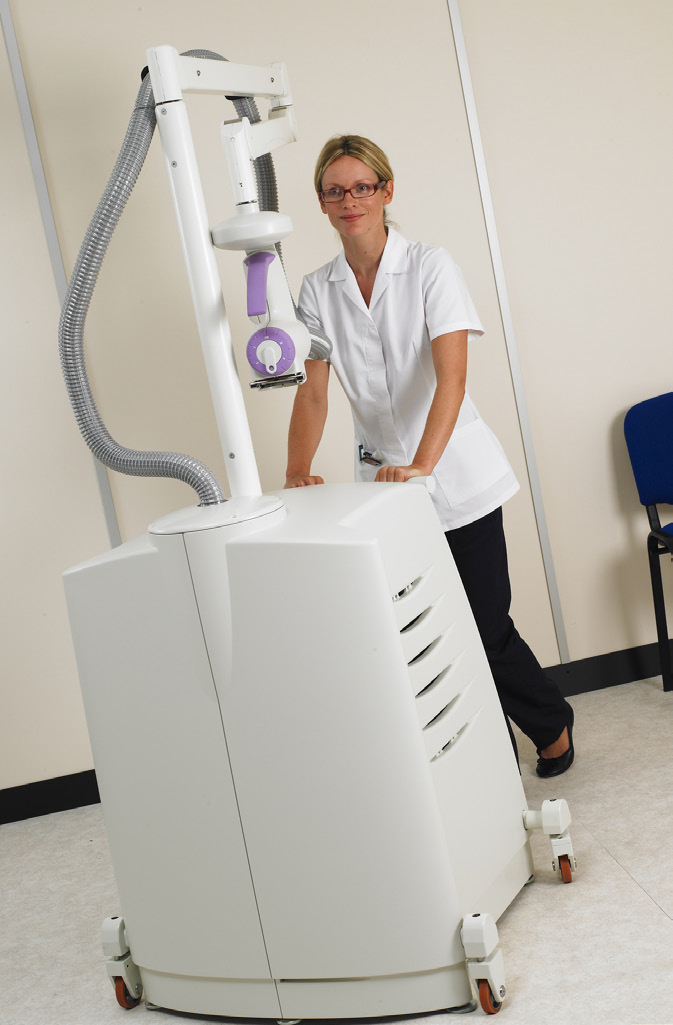

Xstrahl 100
Quick and effective treatment of superficial skin diseases
|

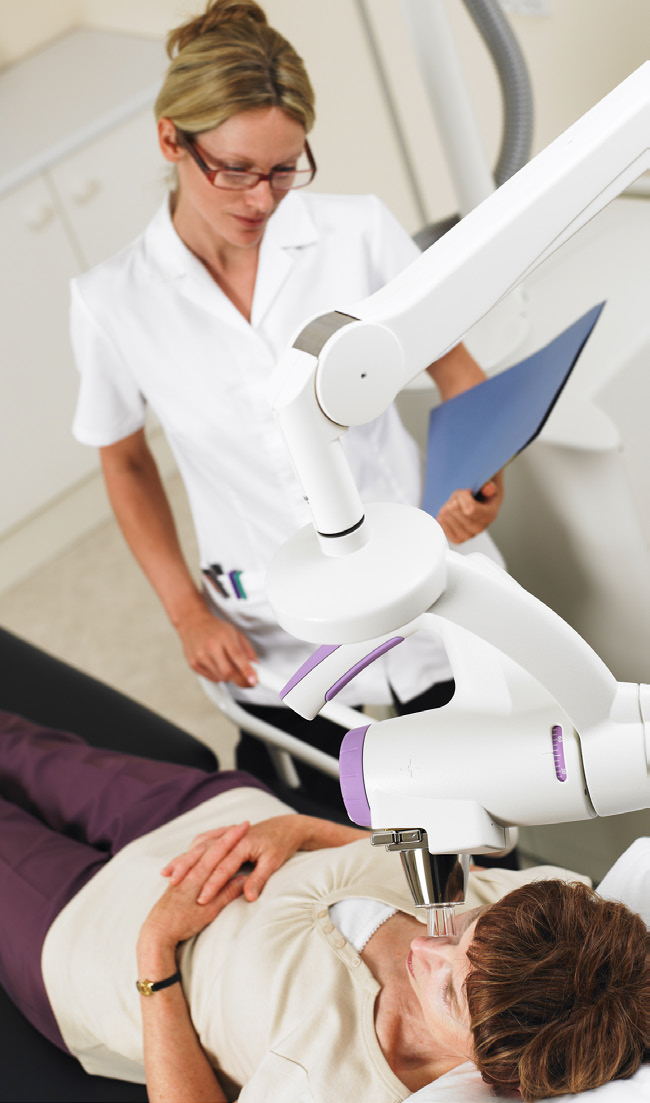

Clinical indications Xstrahl 100 is a low-energy x-ray therapy system for the treatment of a wide range of skin diseases:
Xstrahl 100 is a system that will be an effective addition to a linear accelerator. By providing faster treatment, the Xstrahl system will significantly change the work of the radiotherapy department, allowing more patients to receive the necessary radiotherapy treatment in a timely manner, guaranteeing its successful results. |
![]() |
| Parameter | XSTRAHL 100 |
| Voltage and current | Voltage from 10 to 100 kV. Current strength from 2 to 15 mA. The current strength can be programmed for the required dose rate (cGy/min). |
| Duration of treatment | The duration of treatment is set in monitor units. Integrated dosimetry system for online dose control. |
| Clinical interface | Concerto is a simple and clear clinical interface. |
| Calibration interface | Fisica interface for configuration, calibration and maintenance. |
| Fastening system | The Xstrahl 200 system can be fixed to the floor or ceiling. |
| Treatment planning program | XBeam treatment planning software is available as an optional extra. |
| Connection with third-party systems | An application for pairing with other devices (XBridge) is supplied as an optional extra. |
All Xstrahl medical systems are CE, FDA and Health Canada compliant and manufactured under a quality management system certified to ISO13485.
Manufacturer
Xstrahl
